Safety and System Monitors
Two monitoring windows provide live status of the system and the Safety Conditions. These monitors are updated every 30 seconds. They are consistent with their API's.

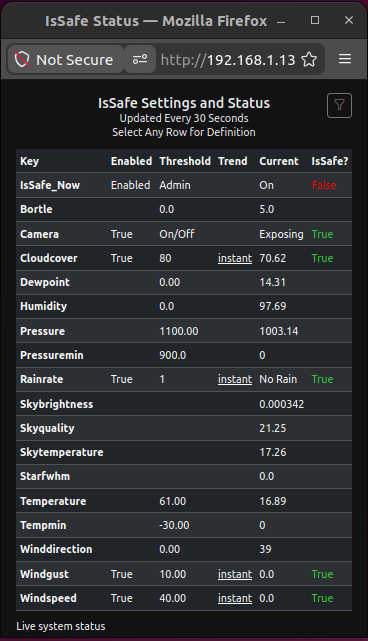

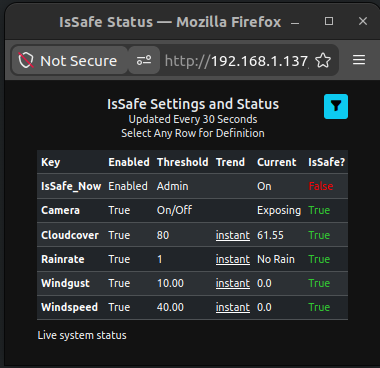

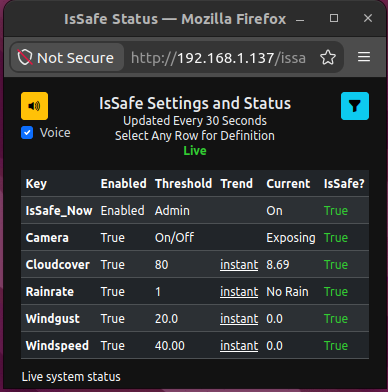

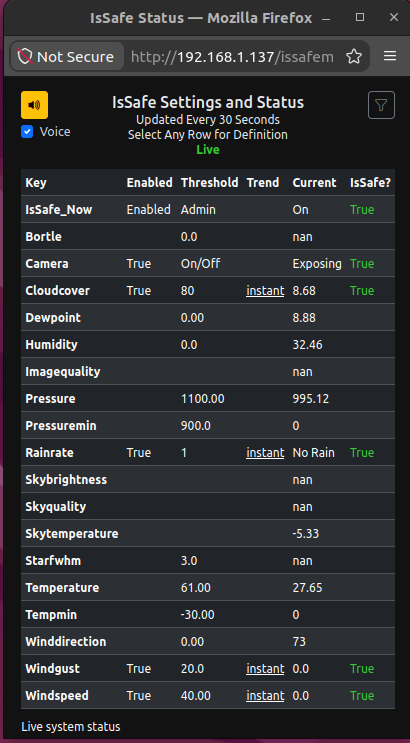

The IsSafe monitor has a full and short version. Both versions show the activated safety conditions and their status. The full version shows all possible safety conditions including inactive ones.
Trend is the change over the last 5 readings and its direction. Instant is for those conditions that do not trend. This monitor will stay on the desktop even after closing all other site windows.

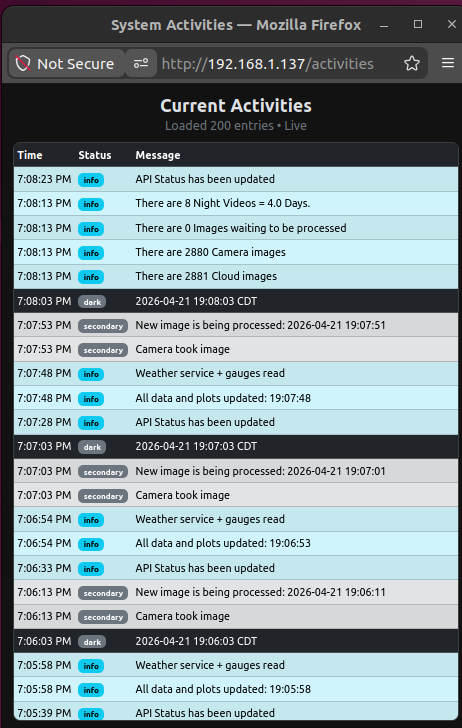

The Activities Monitor shows the latest system activities. The window can be scrolled to show the last 200 events. This monitor will stay on the desktop even after closing all other site windows.
